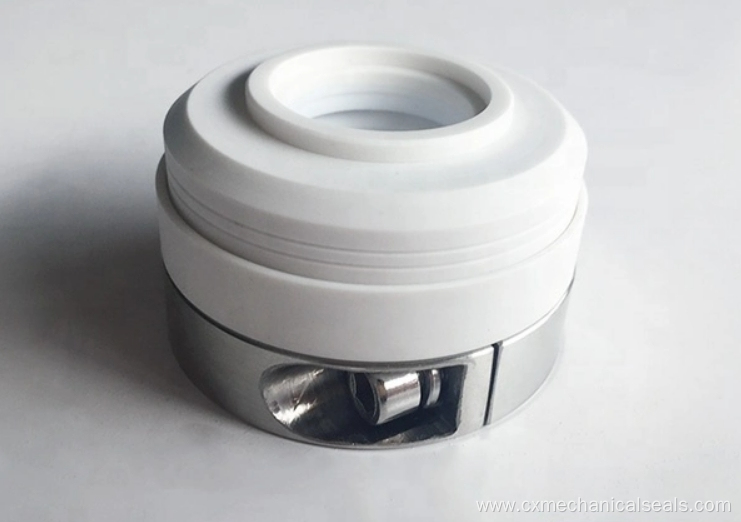

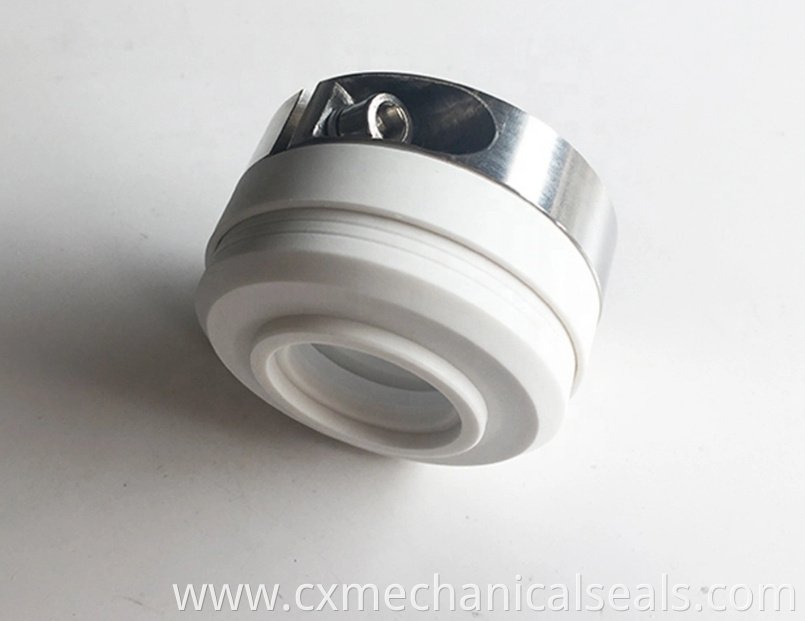

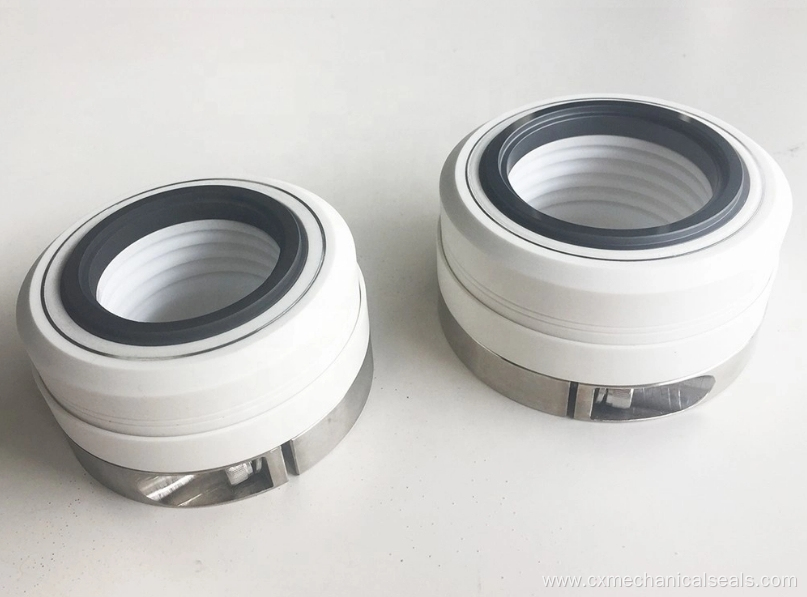

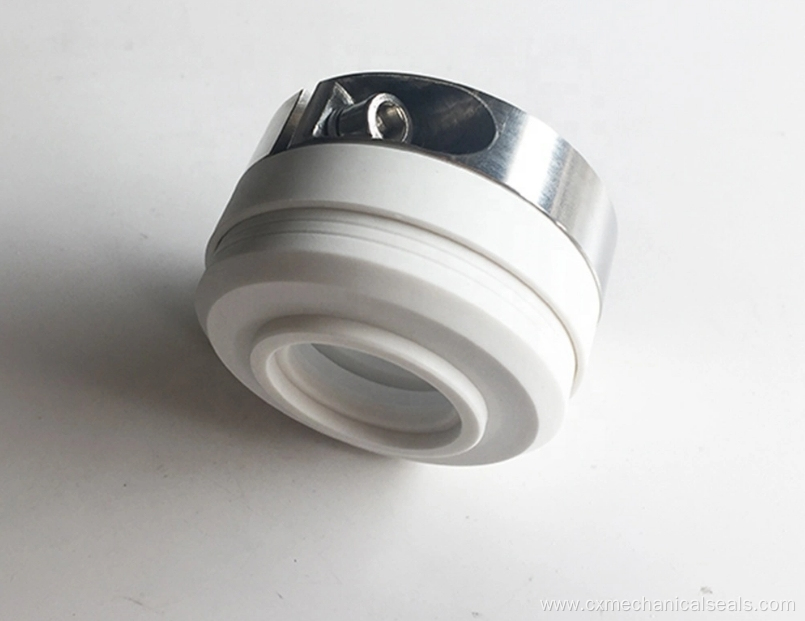

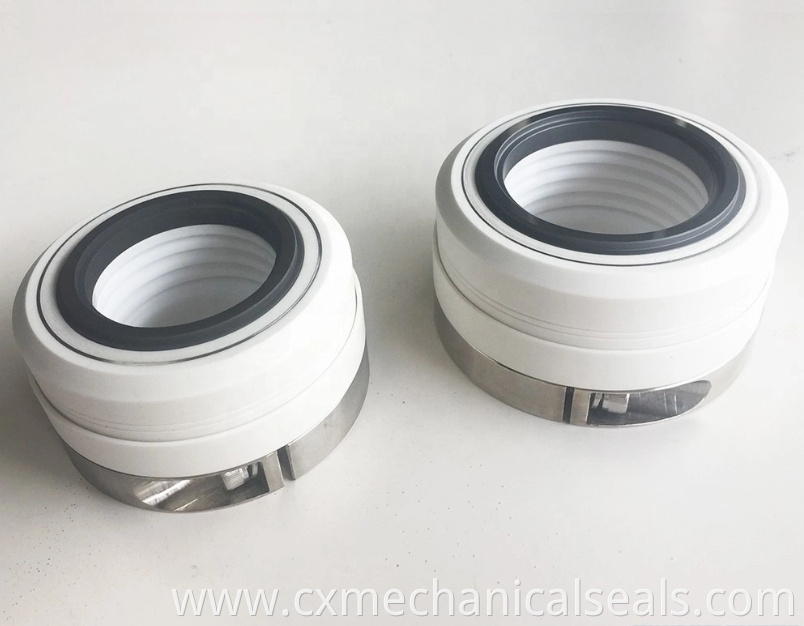

PTFE Bellows Mechanical Seals

Basic Info

Brand: Enactus

Place Of Origin: China

Speed: ≤20m/s

Size: Customized Size

Brand Name: Enactus

Application: Our products are successfully used in different fields, such as Water treatment, Petroleum, Chemistry, refinery, pulp & paper, food, marine etc.

Pressure: ≤1.2mpa

Temperature: -50 °C~+220 °C

Additional Info

Packaging: 1.Tissue paper + Carton box 2.As per customer`s requirement

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 100000 Piece/Pieces per Month

HS Code: 8484200090

Port: shanghai,guangzhou,ningbo

Product Description

PTFE bellows Mechanical Seals are commonly used in applications where chemical resistance is critical, such as in the chemical, pharmaceutical, and food processing industries. They are also used in applications where the seal faces need to be isolated from the process fluid, such as in pumps handling toxic or hazardous substances.Lasdrop Shaft Seal,Ptfe Wedge Seals.
Some advantages of PTFE bellows mechanical seals include:
1. Chemical resistance: PTFE is highly resistant to a wide range of chemicals, making it suitable for use in corrosive environments.
2. Temperature resistance: PTFE can withstand high temperatures without losing its sealing properties.
3. Low friction: PTFE has a low coefficient of friction, which helps to reduce wear and improve the efficiency of the seal.
4. Flexibility: The bellows design allows for axial movement, which helps to compensate for misalignment and axial movement of the shaft.
5. Long life: PTFE bellows mechanical seals are known for their durability and long service life.

Features

PTFE bellows seals,
Externally mounted,Independent of direction of rotation.

Multiple spring, single seal ,balanced

Recommended Applications

Chemical and organic compounds industry
Extreme corrosion resistance media
Anticorrosive Pumps
Other Rotating Equipment.

Combined Materials:

Rotary Face:

Silicon carbide (RBSIC)
Carbon graphite resin impregnated Ak

Glass Filled PTFE Y
Stationary Seat
Surfacing Tungsten carbide I
Silicon carbide (RBSIC)
Stainless Steel (SUS316)
99% Aluminium Oxide B1
Bellowas
Composite PTFE Y1

Spring
Stainless Steel (SUS304)
Stainless Steel (SUS316)

Parts

Pure PTFE T
Stainless Steel (SUS316)

Operating range

Shaft diameter: d1=18...100mm(0.750'' ...4.000'')
Pressure: p=0...0.8Mpa（116psi）
Temperature: t = -20 °C ...120 °C(-4°F to 248°F)
Sliding velocity: Vg≤13m/s（42.6ft/m）

Packaging:

1.Tissue paper + Carton box

2.As per customer’s requirement

PTFE wedge mechaical seal
