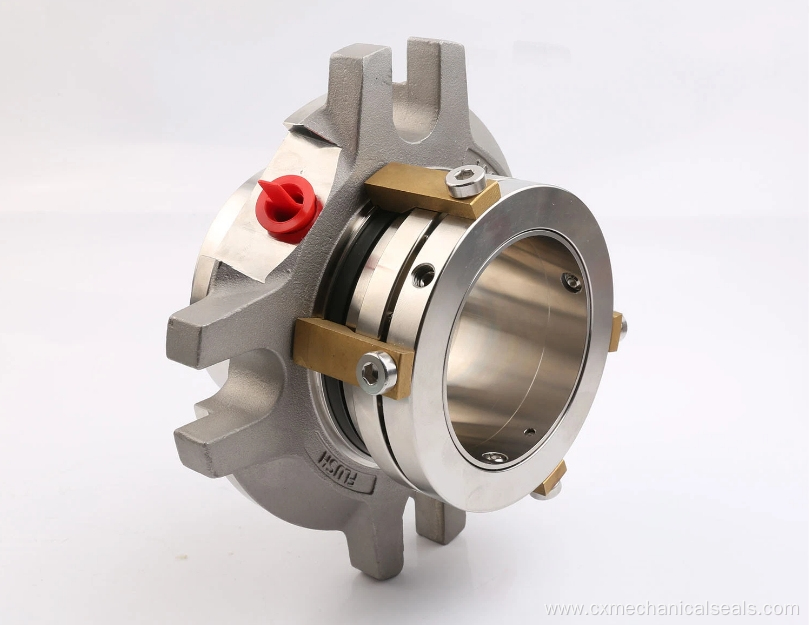

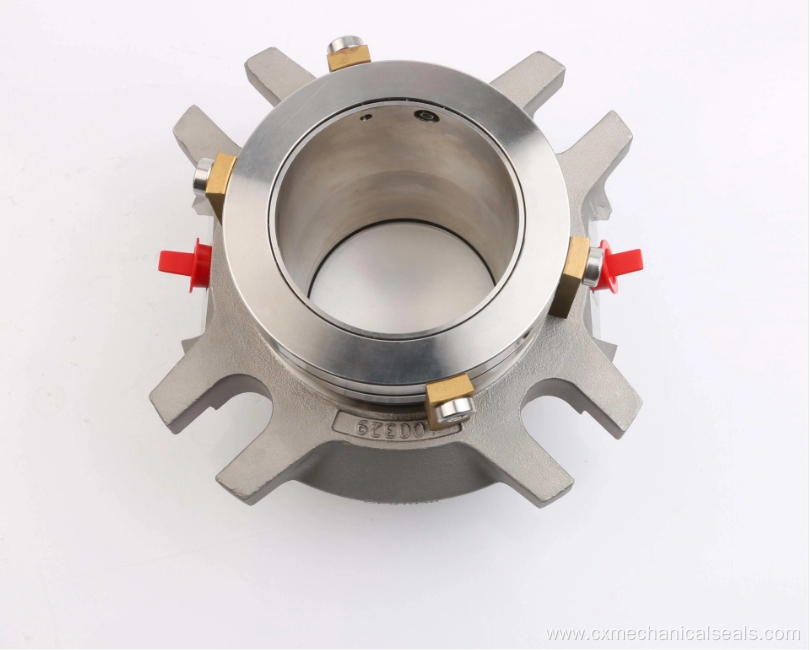

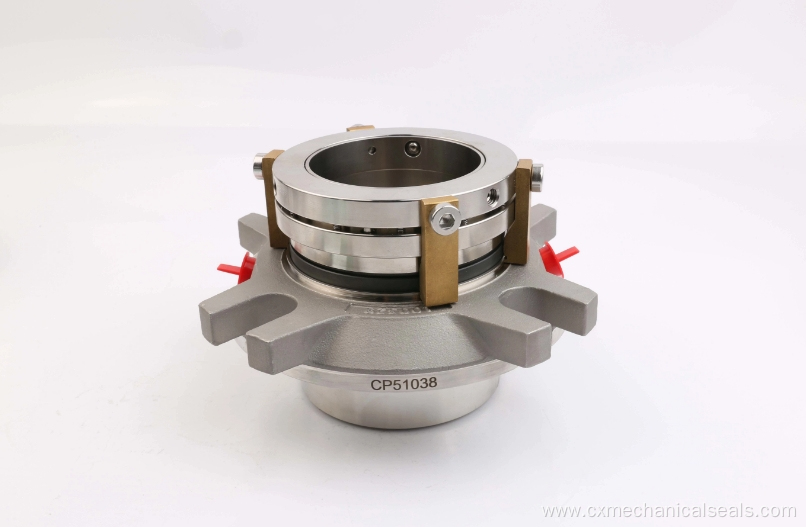

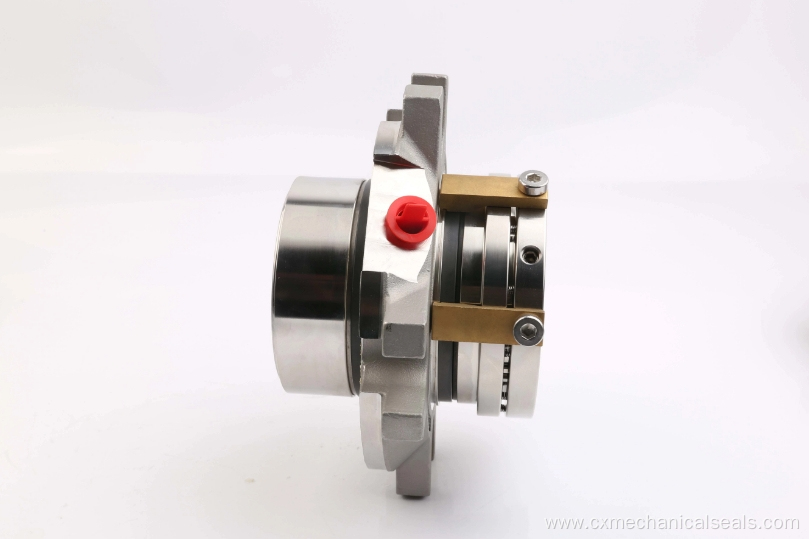

EDM Double Cartridge Mechanical Seals for Industrial Pumps

Basic Info

Brand: Enactus

Brand Name: Enactus

Size: 25-140mm

Temperature: -20 ~ 180ºC

Speed: up to 20m/S

Application: Oil and gas industry, chemical industry, power industry, steel industry, pharmaceutical industry.

Pressure: 0-20bar

Additional Info

Packaging: Carton,outer package as request

Transportation: Ocean,Land,Air,Express,Express

Place of Origin: China

Supply Ability: 100000 Piece/Pieces per Month

HS Code: 8484200090

Port: shanghai,guangzhou,ningbo

Product Description

EDM Double Cartridge Mechanical Seals are specifically designed for industrial pumps. These seals consist of two seal faces that are mounted on a rotating and stationary ring. The rotating ring is connected to the pump shaft, while the stationary ring is fixed to the pump housing.The purpose of these seals is to prevent leakage of fluid from the pump, ensuring the efficient and reliable operation of the pump. They are commonly used in applications where high pressures, temperatures, and corrosive fluids are involved.

EDM double cartridge Mechanical Seals offer several advantages over other types of seals. They provide a higher level of sealing performance, reducing the risk of leakage and downtime. They also have a longer service life, resulting in lower maintenance and replacement costs.Single Spring Mechanical Seals.

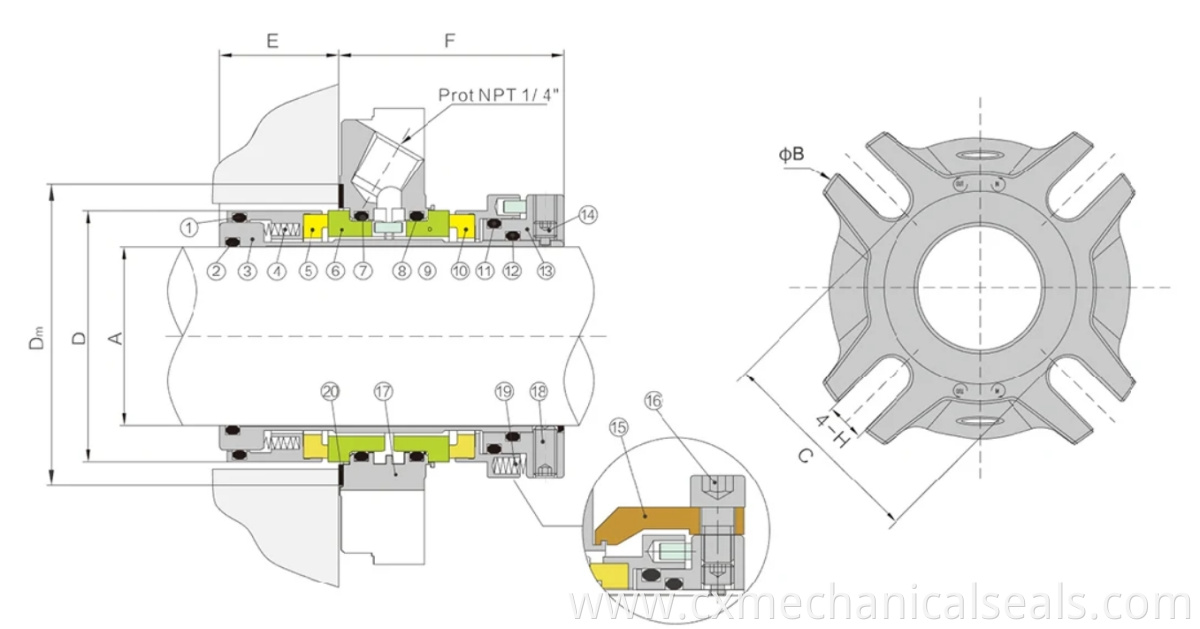

NO	Decription	Material	NO	Decription	Material
1	O-Ring	EPR/FKM/Aflas/Kalrez	11	O-Ring	EPR/FKM/Aflas/Kalrez
2	O-Ring	EPR/FKM/Aflas/Kalrez	12	O-Ring	EPR/FKM/Aflas/Kalrez
3	Shaft Sleeve	316SS	13	Clamp Ring	316SS
4	Spring	Alloy 276	14	Anti-tamper Screw	316SS
5	Inboard Rotary Face	Carbon/SSIC/TC	15	Setting Clip	Brass
6	Inboard Stationary Face	SSIC/TC	16	Clip Screw	316SS
7	O-Ring	EPR/FKM/Aflas/Kalrez	17	Gland	316SS
8	O-Ring	EPR/FKM/Aflas/Kalrez	18	Drive Screw	316SS
9	Outboard Stationary Face	SSIC/TC	19	Spring	Alloy 276
10	Outboard Rotary Face	Carbon/SSIC/TC	20	Gasket	AF1

Size(mm)

φA	φB	C	φD	φDm	E	F	H
24	110.0	60.5	38.0	56.0	31.1	51.0	13.2
25	110.0	60.5	39.4	56.0	31.1	51.0	13.2
28	110.0	60.5	42.6	58.0	31.1	51.0	13.2
30	110.0	63.5	44.0	61.5	31.1	51.0	13.2
32	110.0	63.5	46.0	61.5	31.1	51.0	13.2
33	110.0	63.5	47.0	61.5	31.1	51.0	13.2
35	110.0	67.0	49.0	65.0	31.1	51.0	13.2
38	127.0	72.0	55.8	70.0	29.1	56.3	14.2
40	127.0	72.0	55.8	70.0	29.1	56.3	14.2
43	127.0	72.0	59.0	71.0	29.1	56.3	14.2
45	133.0	77.0	62.2	75.0	29.1	56.3	14.2
48	133.0	77.0	65.4	75.0	29.1	56.3	14.2
50	133.0	77.0	65.4	75.0	29.1	56.3	14.2
53	139.0	86.0	68.5	83.0	31.3	56.3	14.2
55	146.0	94.0	71.7	92.0	31.3	56.3	17.5
58	146.0	94.0	74.9	92.0	31.3	56.3	17.5
60	155.0	100.0	78.1	92.0	31.3	56.3	17.5
63	178.0	109.5	84.1	108.0	28.1	63.8	17.5
65	178.0	109.5	87.3	108.0	28.1	63.8	17.5
70	178.0	109.5	90.5	108.0	28.1	63.8	17.5
75	190.5	125.0	96.8	124.0	28.1	63.8	17.5
80	190.5	125.0	100.0	124.0	28.1	63.8	17.5
85	203.0	135.0	106.4	133.0	28.1	63.8	17.5
90	216.0	150.0	112.7	146.0	28.1	63.8	20.0
95	216.0	150.0	119.1	146.0	28.1	63.8	20.0
100	229.0	168.0	122.2	165.0	28.1	63.8	20.0
