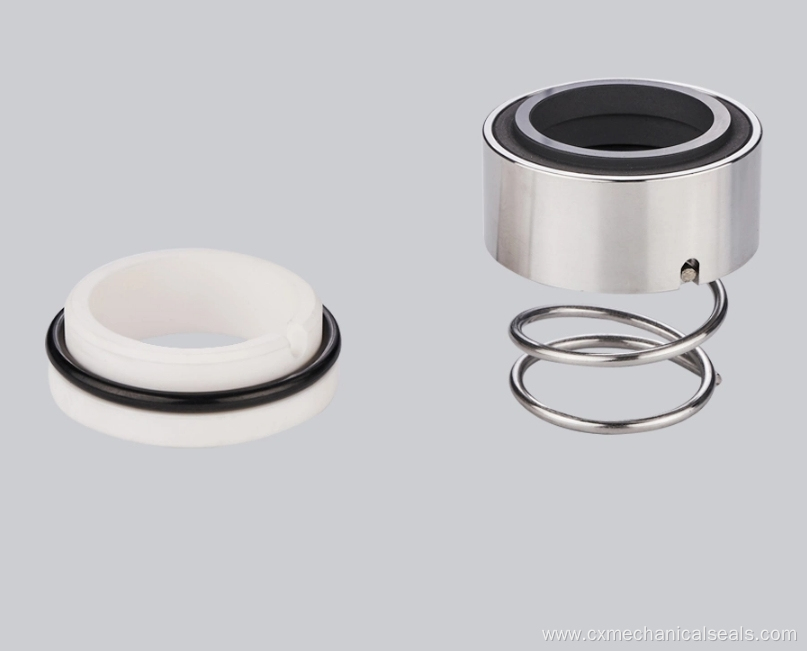

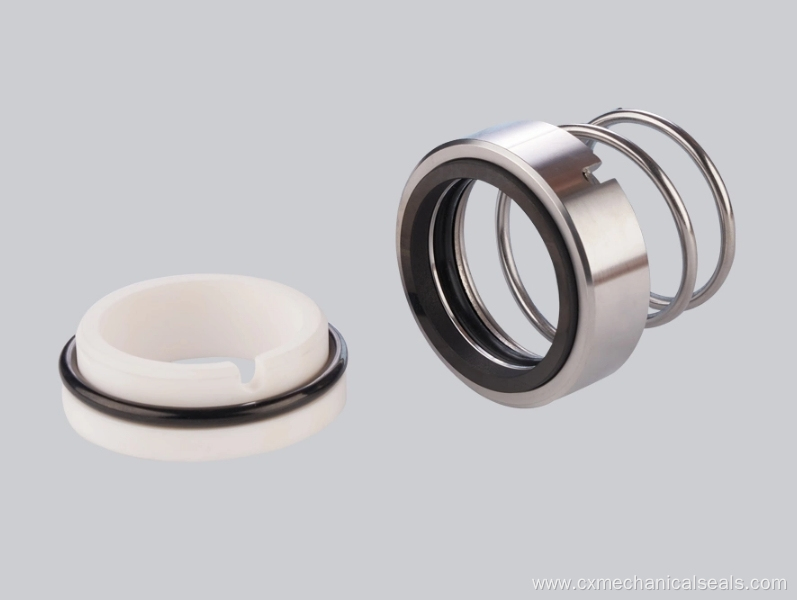

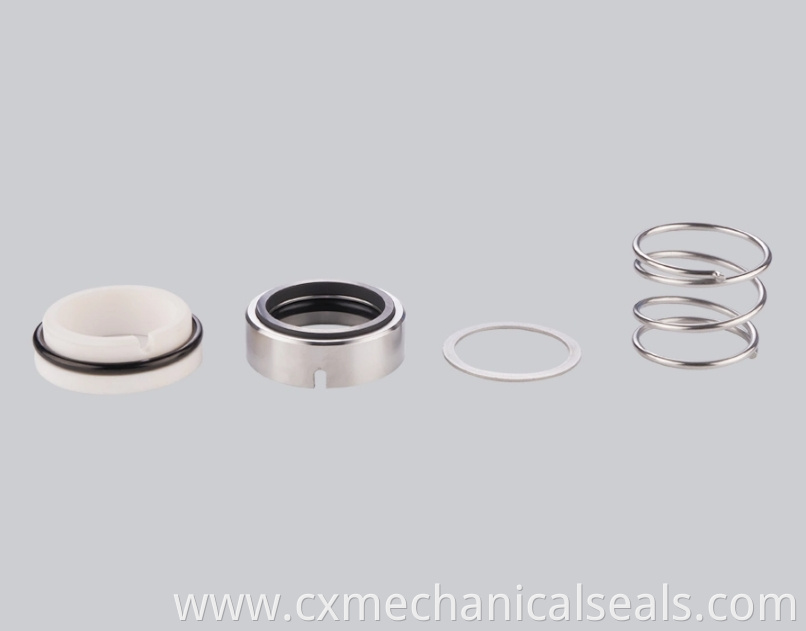

Single Spring for Burgmann M3n Water Pump Seal
Basic Info
Brand: Enactus
Place Of Origin: China
Additional Info
Packaging: Carton,outer package as request
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Supply Ability: 1000000 Piece/Pieces per Month
Port: shanghai,guangzhou,ningbo
Product Description
1. Burgmann M481K Single Spring: This single spring is made from high-quality materials and is designed to provide excellent sealing performance for water pump applications. It offers reliable operation and long service life.
2. AESSEAL M03N Single Spring: This single spring is specifically designed for the Burgmann M3n water pump seal and offers superior performance in demanding operating conditions. It is made from premium materials to ensure durability and reliability.
3. Flowserve Pac-Seal 190 Single Spring: This single spring is engineered for high-performance sealing in water pump applications. It features a robust design and high-quality construction to provide excellent sealing efficiency and long service life.
4. John Crane Type 21 Single Spring: This single spring is a popular choice for water Pump Seals and is compatible with the Burgmann M3n seal. It is designed to deliver reliable sealing performance and can withstand high pressures and temperatures.Burgmann M7N Mechanical Seal.
Operating Range
Shaft diameter:
d1 = 6~80 mm (0,24"~ 3,15")
Pressure: p1 = 10 bar (145 PSI)
Temperature:
t = -20 °C ~ +140 °C (-4 °F~+355 °F)
Sliding velocity: vg = 15 m/s (50 ft/s)
Axial movement: ±1.0 mm
Combination Material
Rotary Face
Tungsten carbide
Cr-Ni-Mo Steel (SUS316)
Surface hard facing tungsten carbide
Stationary Seat
Carbon graphite resin impregnated
Silicon carbide (RBSIC)
Tungsten carbide
Auxiliary Seal
Nitrile-Butadiene-Rubber (NBR)
Fluorocarbon-Rubber (Viton)
Ethylene-Propylene-Diene (EPDM)
Stainless Steel (SUS304)
Stainless Steel (SUS316)
Left rotation: L Right rotation:
Metal Parts
Stainless Steel (SUS304)
Stainless Steel (SUS316)
Product Categories : Mechanical Seals Replacement > Burgmann Mechanical Seal
