Shaft Seal for Water Pump Replace Burgmann M7n

Basic Info

Brand: Enactus

Place Of Origin: China

Additional Info

Packaging: Carton,outer package as request

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 1000000 Piece/Pieces per Month

Port: shanghai,guangzhou,ningbo

Product Description

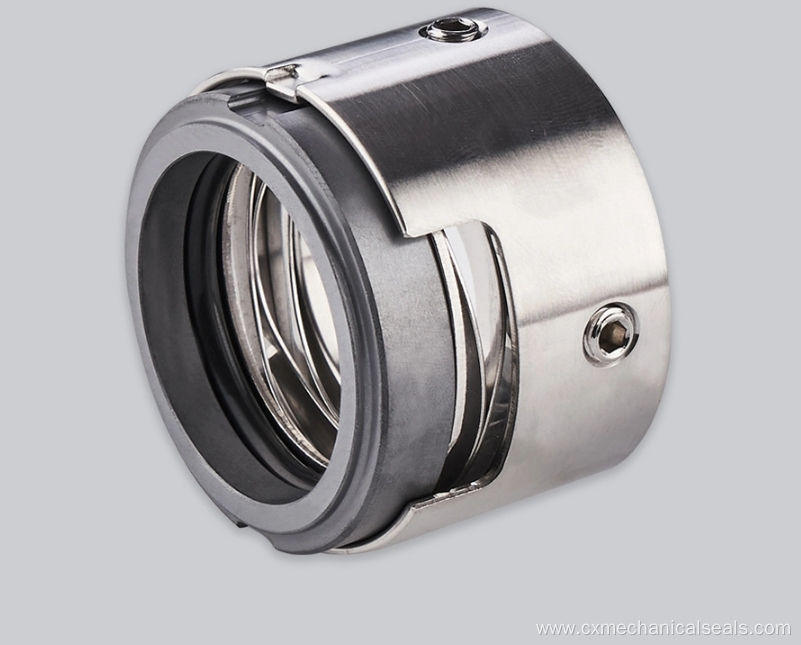

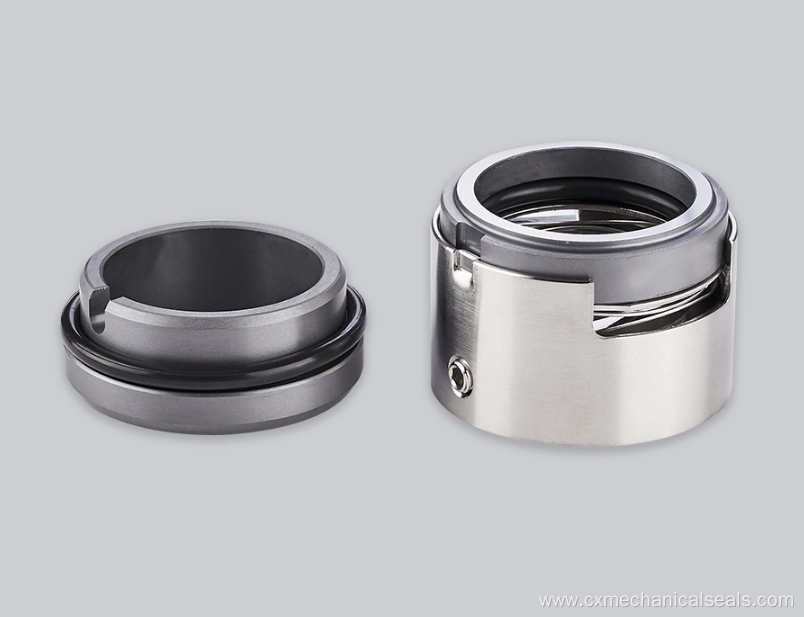

The Burgmann M7N is a mechanical seal manufactured by EagleBurgmann, a leading provider of sealing technology. The M7N is a single mechanical seal designed for general-purpose applications in pumps, mixers,Burgmann Seals and other rotating equipment.Burgmann M7N Mechanical Seal,burgmann m7n mechanical seal Burgmann Mechanical Seal price.

Key features of the Burgmann M7N mechanical seal include:

1. Balanced design: The M7N seal is a balanced mechanical seal, meaning that it is designed to handle high-pressure applications without causing excessive axial or radial forces on the shaft.

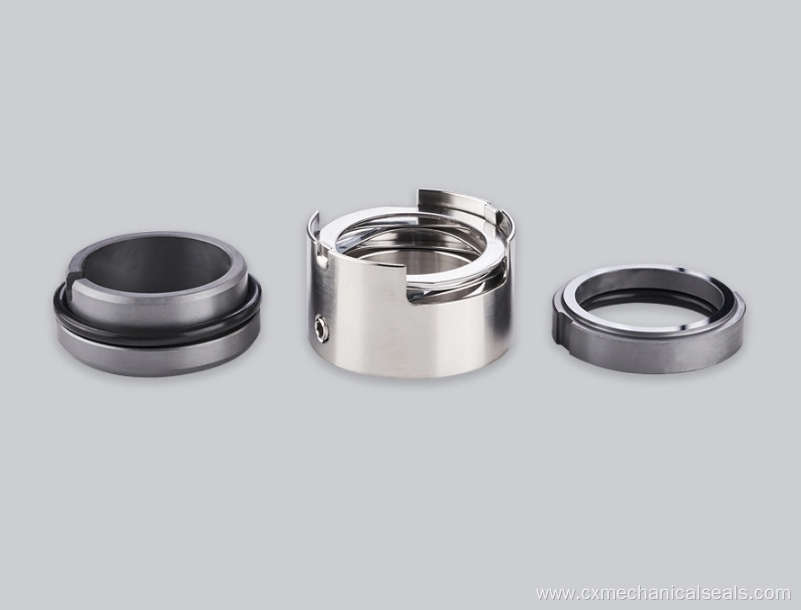

2. Modular construction: The M7N seal is built using a modular design, allowing for easy installation and maintenance. The seal faces, springs, and other components can be easily replaced without disassembling the entire seal.
3. Multiple material options: The M7N seal is available in various material options to suit different operating conditions. The seal faces can be made of carbon, silicon carbide, or tungsten carbide, depending on the application requirements.

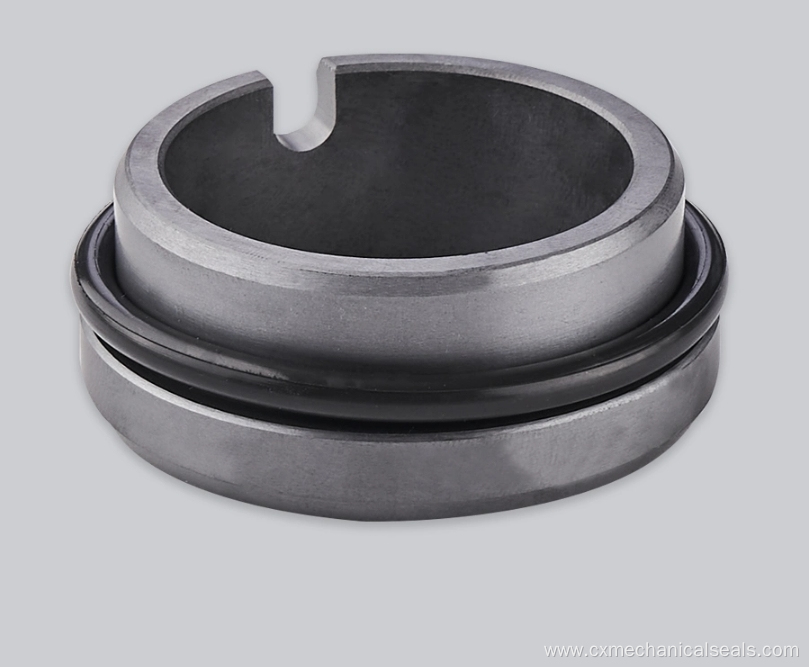

4. Shaft protection: The M7N seal features a stationary seat with an O-ring, which provides additional protection to the shaft against corrosion and wear.

5. Suitable for wide range of applications: The M7N seal is suitable for a wide range of applications, including chemical processing, oil and gas, water and wastewater, and power generation.

Features

For plain shafts

Single seal

Unbalanced

Super-Sinus-spring or multiple springs rotating

Independent of direction of rotation

Operating Range

Shaft diameter:d1 = 14 ... 100 mm (0.55 " … 3.94 ")
Pressure:p1 = 25 bar (363 PSI)
Temperature:t = -50 °C ... +220 °C(-58 °F ... +428 °F)
Sliding velocity:vg = 20 m/s (66 ft/s)
Combination Material

Rotary Face
Silicon carbide (RBSIC)
Carbon graphite resin impregnated
Tungsten carbide
Cr-Ni-Mo Steel (SUS316)
Stationary Seat
Silicon carbide (RBSIC)
Carbon graphite resin impregnated
Tungsten carbide
Auxiliary Seal
Fluorocarbon-Rubber (Viton)
Ethylene-Propylene-Diene (EPDM)
Silicone-Rubber(MVQ)
