type103 mechanical seal single spring for Vacuum pump
Basic Info
Brand: Enactus
Place Of Origin: China
Speed: ≤20m/s
Brand Name: Enactus
Size: 16~120mm,Customized Size
Temperature: -45°C~180°C
Application: Our products are successfully used in different fields, such as Water treatment, Petroleum, Chemistry, refinery, pulp & paper, food, marine etc.
Pressure: ≤1.2mpa
Additional Info
Packaging: Generally, we pack our goods in PE bags and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Transportation: Ocean,Land,Air,Express,Express
Place of Origin: China
Supply Ability: 100000 Piece/Pieces per Day
HS Code: 8484200090
Port: shanghai,guangzhou,ningbo
Product Description

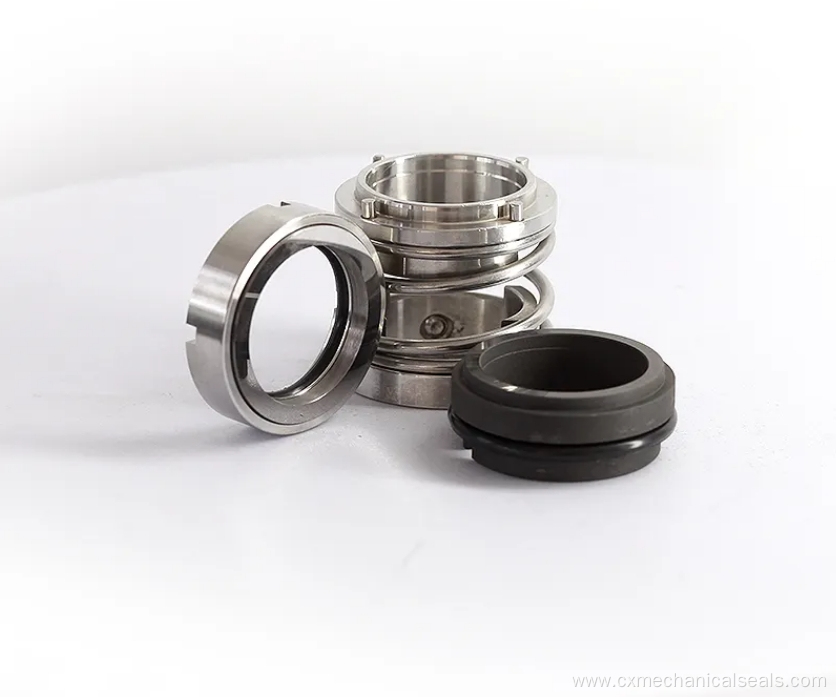

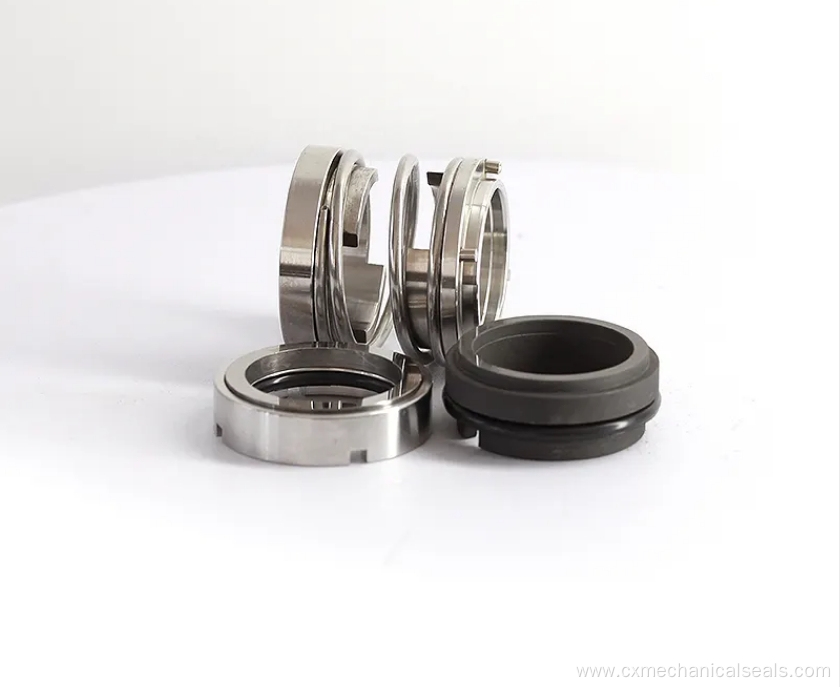

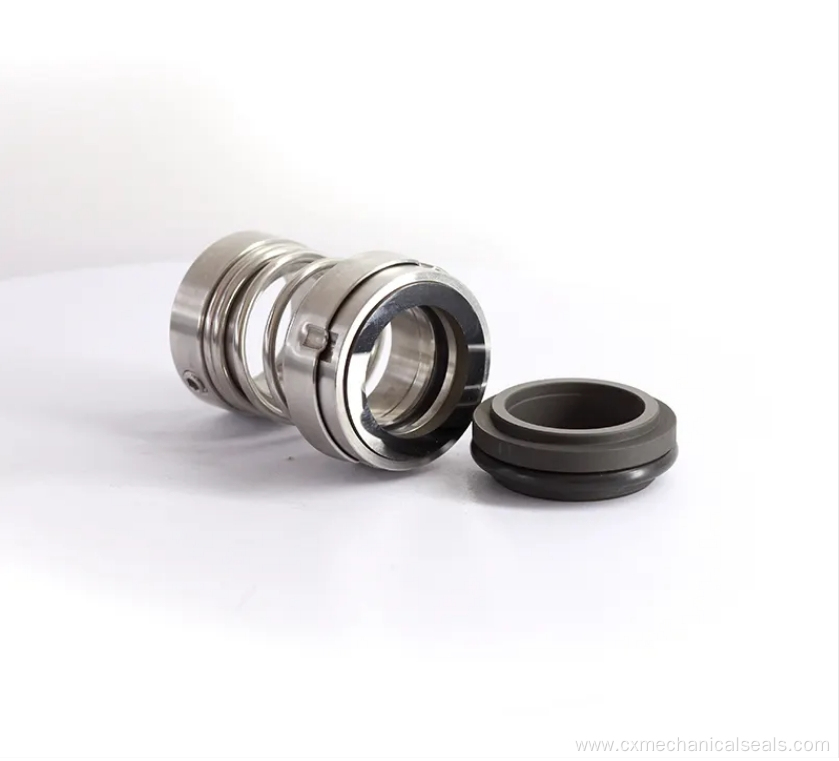

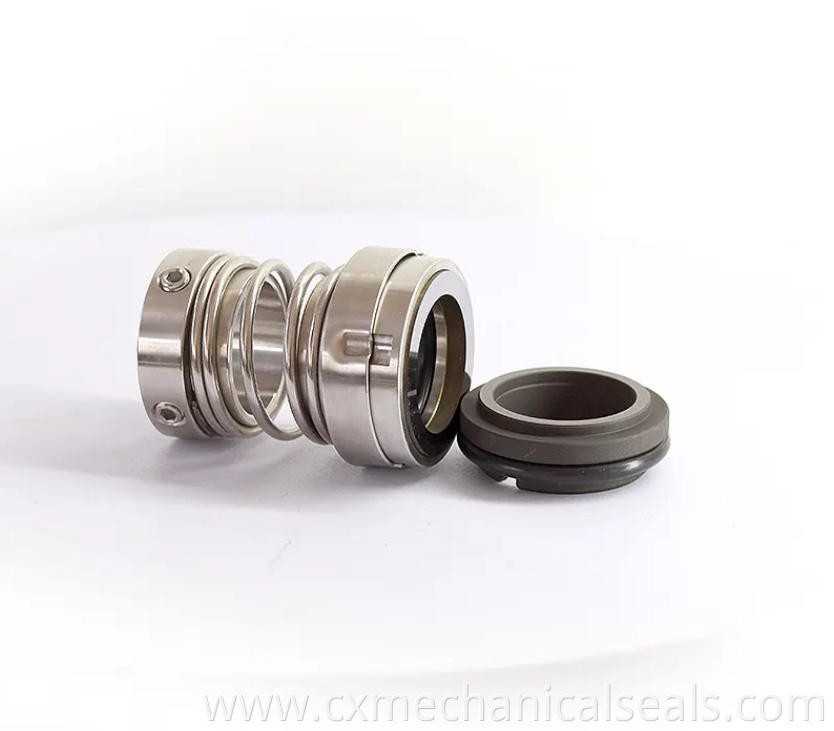

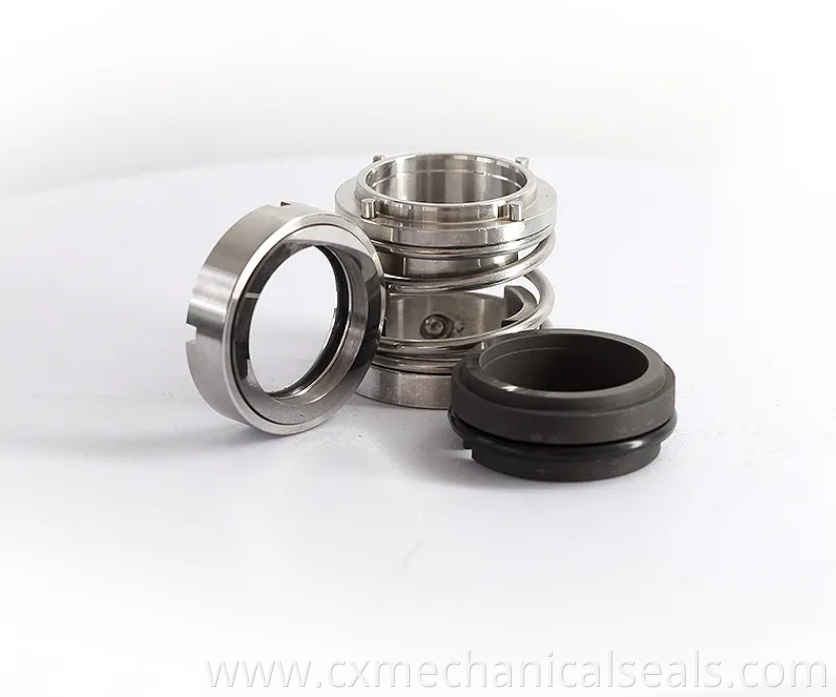

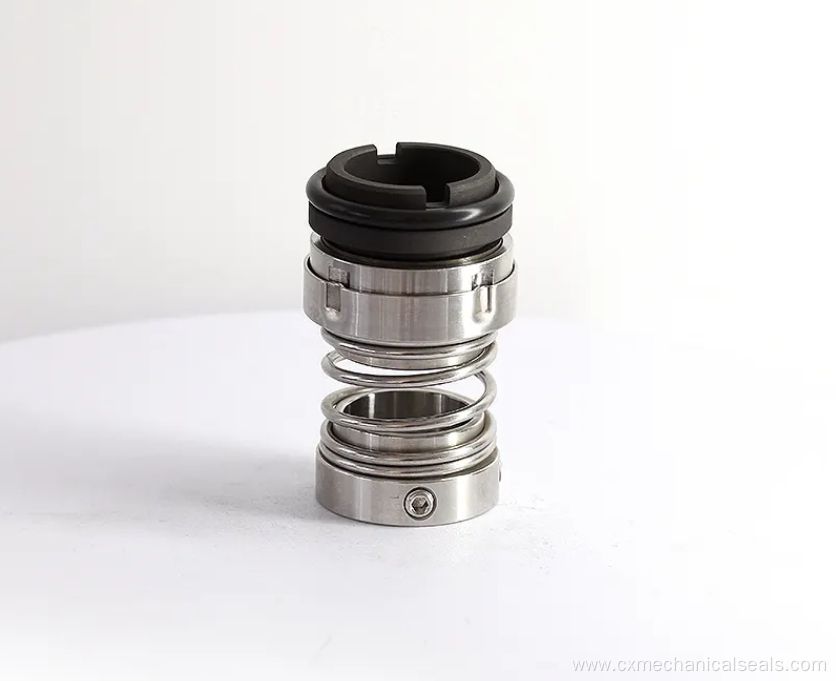

The Type 103 mechanical seal typically consists of a stationary face, a rotating face, and a single coil spring. The stationary face is mounted on the pump housing, while the rotating face is attached to the pump shaft. The single spring provides the necessary axial force to maintain contact between the two faces,Single Coil Mechanical Seal, Single Coil Spring Seal,ensuring a tight seal.
This type of mechanical seal is specifically designed to handle the challenging conditions of vacuum pump applications. It is capable of withstanding high temperatures,Single Spring Mechanical Seals corrosive media, and high vacuum levels. The single spring design allows for easy installation and maintenance, making it a popular choice for vacuum pump systems.
Operational Conditions:
Temperature: -45°C~180°C
Pressure: ≤1.0MPa
Speed: ≤20m/s
Materials:
Stationary Ring: Carbon, Silicon Carbide
Rotary Ring: Ceramic, Silicon Carbide
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: Steel
Applications: Clean water, sewage water, oil and other moderately corrosive fluids
Product Categories : Mechanical Seals > Single Spring Mechanical Seals
