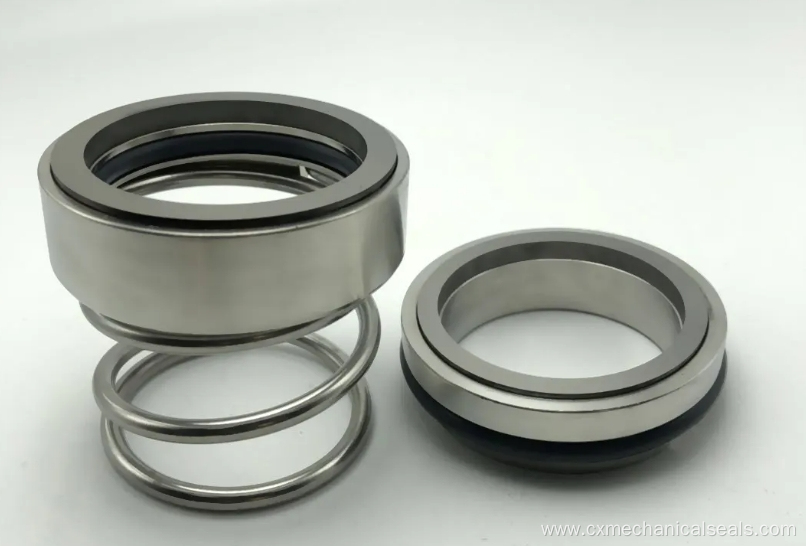

O Ring Type Mechanical Seals for Rotating Equipment

Basic Info

Brand: Enactus

Place Of Origin: China

Speed: ≤20m/s

Brand Name: Enactus

Pressure: ≤1.2mpa

Size: 25mm to 80mm,Customized Size

Temperature: -20 ~ +180ºC

Application: Oil, Clean Water, Sewage water, General corrosive fluids,etc.

Additional Info

Packaging: 1.Tissue paper + Carton box 2.As per customer`s requirement

Transportation: Ocean,Land,Air,Express,Express

Place of Origin: China

Supply Ability: 100000 Piece/Pieces per Month

HS Code: 8484200090

Port: shanghai,guangzhou,ningbo

Product Description

The O-ring is typically made of materials such as rubber or silicone, which have excellent sealing properties and can withstand a wide range of temperatures and pressures. It is placed in a groove on one of the seal faces and acts as a dynamic seal, creating a tight seal between the two mating surfaces.The two mating seal faces are typically made of materials such as carbon, ceramic, or stainless steel, which are chosen based on the specific application requirements. These faces are designed to be in contact with each other and create a sealing interface that prevents fluid or gas leakage.To ensure proper sealing, the O-ring type Mechanical Seals are designed with a spring or a bellows mechanism. The spring or bellows applies a constant force on the seal faces, maintaining contact and preventing leakage even under varying operating conditions.Radial Shaft Seals,O Ring Mechanical Seals.

Operational Conditions:

Shaft diameter:10mm to 100mm

Temperature:-20ºC to +180ºC

Pressure:≤1MPa

Speed:≤15m/Sec

Materials:

Stationary Ring: Ceramic/Carbon/SiC/TC

Rotary Ring: Carbon/TC

Secondary Seal: NBR/EPDM/TC

Spring Metal Parts: SS304/SS316

Application:

Clean water, Sewage water, Oil and other moderately corrosive fluids
