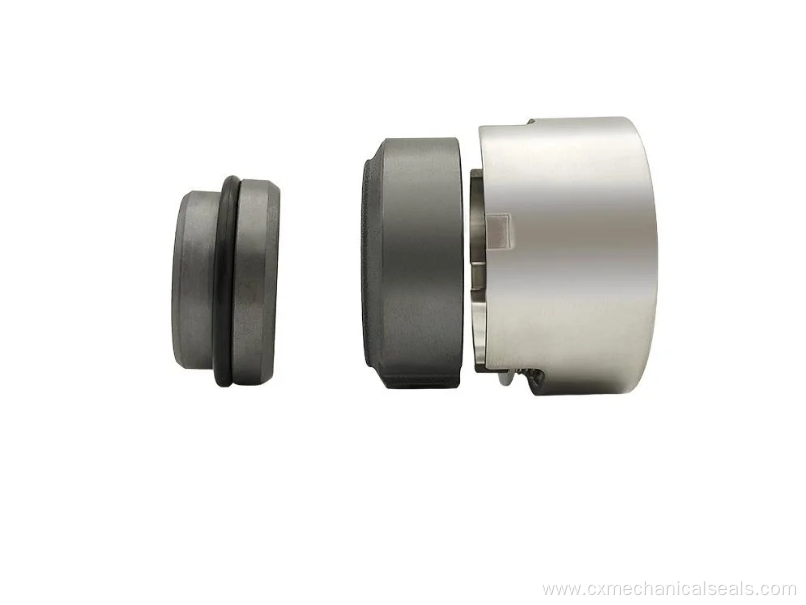

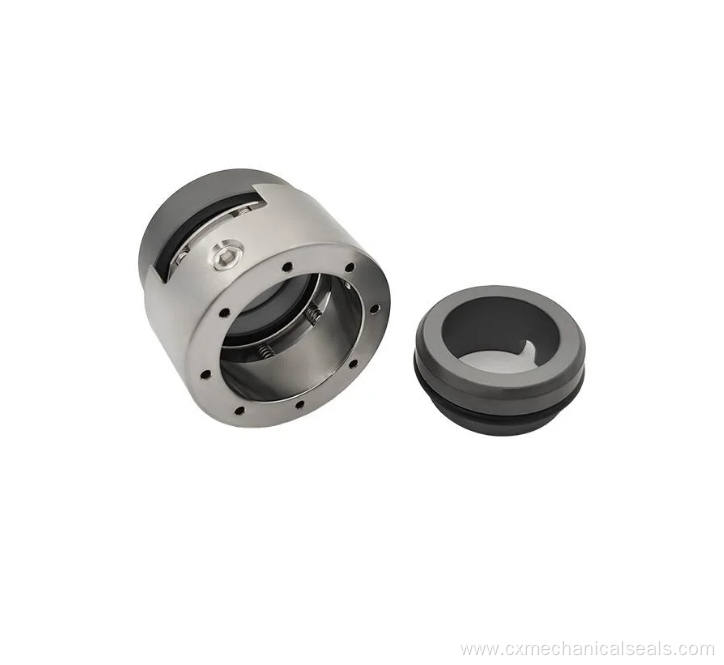

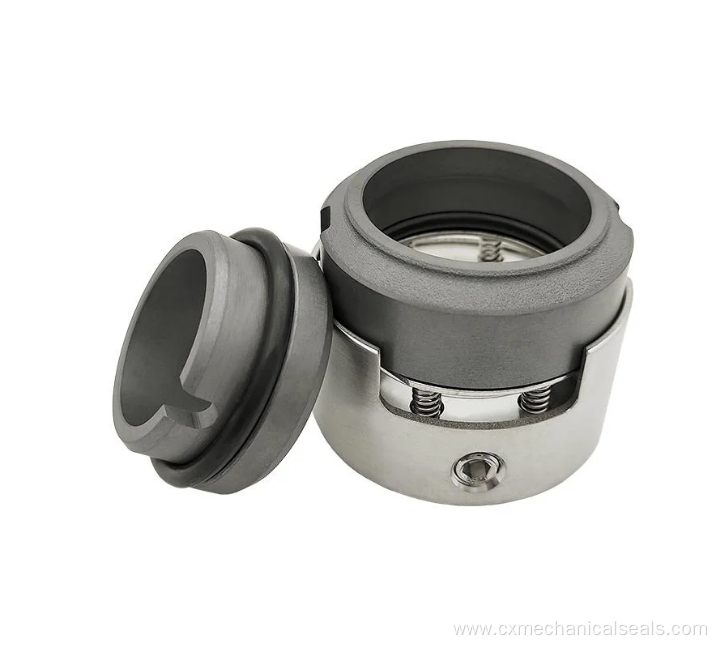

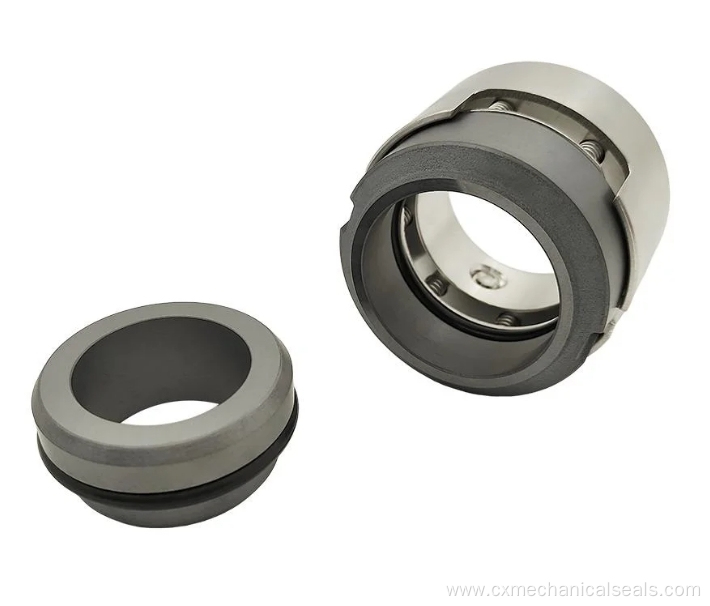

Multiple Spring Mechanical Seals H75 for Chemical Pumps

Basic Info

Brand: Enactus

Place Of Origin: China

Speed: ≤20m/s

Size: Customized Size

Brand Name: Enactus

Application: Oil and gas industry, chemical industry, power industry, steel industry, pharmaceutical industry.

Temperature: -50 °C~+220 °C

Pressure: ≤2.5MPa

Additional Info

Packaging: Carton,outer package as request

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 100000 Piece/Pieces per Month

HS Code: 8484200090

Port: shanghai,guangzhou,ningbo

Product Description

Multiple Spring Mechanical Seals H75 are designed specifically for chemical pumps. These seals are used to prevent leakage of fluids and gases in high-pressure and high-temperature applications.The H75 seal is made up of multiple springs, which provide a higher degree of flexibility and resilience compared to Single Spring Seals. This allows the seal to accommodate shaft movement and misalignment, ensuring a tight and reliable seal.The H75 seal is constructed with materials that are resistant to corrosive chemicals, making it suitable for use in chemical pumps. The seal faces are typically made of materials such as carbon, ceramic, or tungsten carbide, which can withstand the aggressive nature of chemical fluids.These mechanical seals are designed to handle a wide range of chemical applications, including acids, solvents, and corrosive liquids. They are commonly used in industries such as chemical processing, oil and gas,Multiple Spring Seal pharmaceuticals, and wastewater treatment.
Working Conditions
Mediums: Water, oil, weak acids, weak bases and other general corrosive chemical media.
Temperature: -20ºC~200ºC
Pressure: ≤2.5 MPa
Speed: ≤18 m/S
Combined Materials
Stationary Ring : Carbon / Sic / TC
Rotary Ring : Carbon / Sic / TC /SUS304
Secondary Seal : NBR / EPDM / Viton

Spring and Punched Parts: Stainless Steel
