John Crane Type 2100 Mechanical Seal

Basic Info

Brand: Enactus

Place Of Origin: China

Additional Info

Packaging: Carton,outer package as request

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 1000000 Piece/Pieces per Month

Port: shanghai,guangzhou,ningbo

Product Description

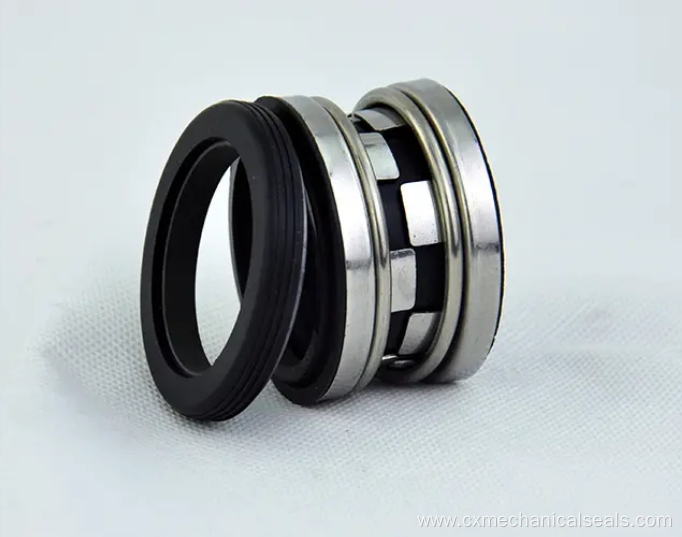

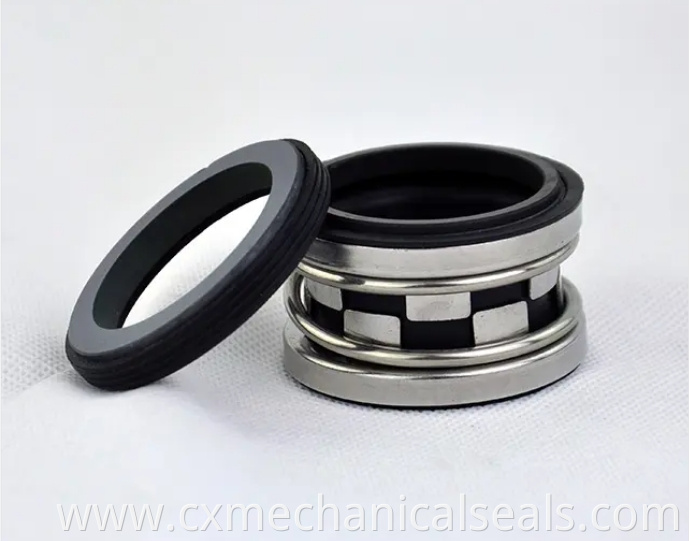

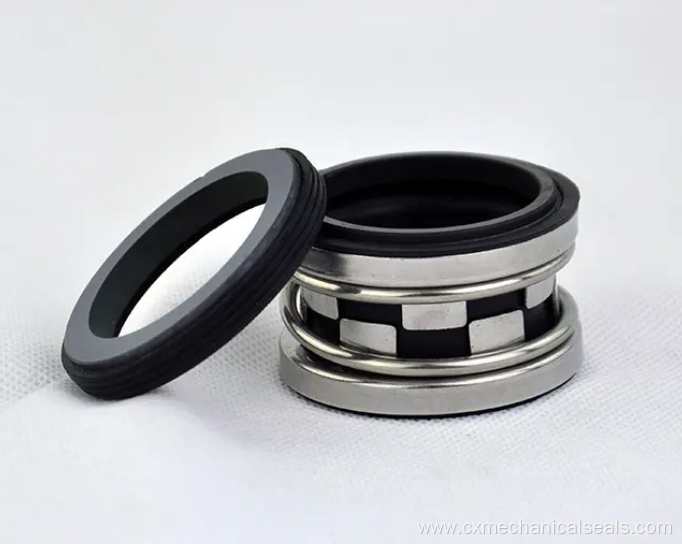

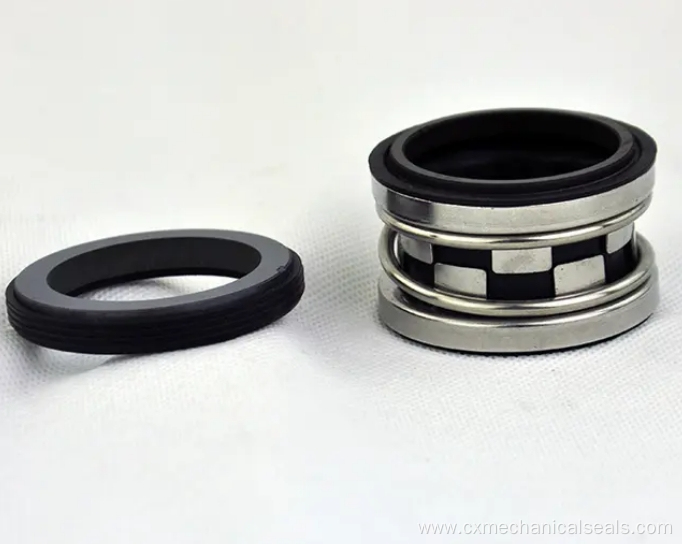

The John Crane Type 2100 Mechanical Seal is a widely used mechanical seal for pumps and rotating equipment. It is designed to provide reliable sealing performance in various industrial applications, including oil and gas, chemical processing, power generation, and water treatment.The Type 2100 Mechanical Seal features a balanced design, which means it can handle high pressures and speeds without causing excessive wear or leakage. It also has a robust construction, with components made from high-quality materials such as carbon, ceramic, and stainless steel.One of the key features of the Type 2100 Mechanical Seal is its ability to accommodate shaft misalignment and axial movement. This helps to prevent seal damage and extend the lifespan of the equipment. The seal also has a self-aligning capability, which allows for easy installation and maintenance.John Crane Pump Seals,John Crane Mech Seal,John Crane Cartridge Seal.

Structure Description:
Equivalent to John crane Type 2100,AES B05 seal, Flowserve Pac-Seal 140, Sterling 540, VULCAN 140
Rubber bellows design
Operating Limits:
Temperature:-20---120℃
Speed: 15m/s
Pressure: 18bar
Standard size: 10mm--100mm
Materials:
Seal ring: Car,Sic,Ssic,Ceramic,TC
Secondary seal: NBR,EPDM,Viton etc.
Spring and metal parts:304,316,HAST.C

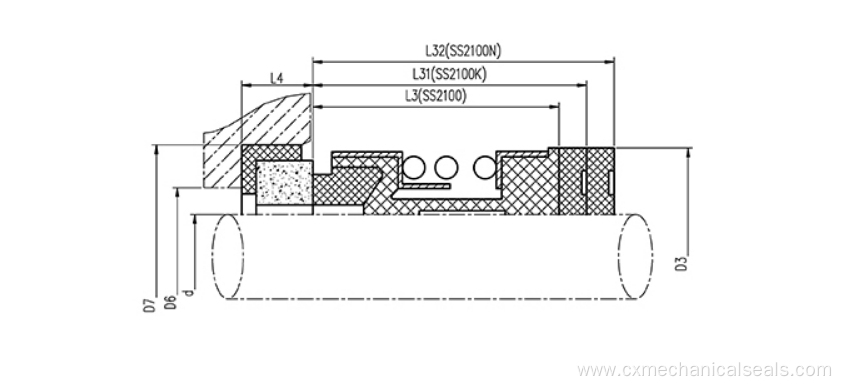

d(mm)	D3	D6	D7	L3	L31	L32	L4
10	20	15	21	15	27.5	35.0	5.0
12	22	17	23	15	26.5	34.0	6.0
14	24	19	25	15	29.0	34.0	6.0
15	25	20	26	15	29.0	34.0	6.0
16	26	23	27	15	29.0	34.0	6.0
18	32	25	33	20	31.5	39.0	6.0
20	34	27	35	20	31.5	39.0	6.0
22	36	29	37	20	31.5	39.0	6.0
24	38	31	39	20	34.0	44.0	6.0
25	39	32	40	20	34.0	44.0	6.0
28	42	35	43	26	36.5	44.0	6.0
30	44	37	45	26	35.5	43.0	7.0
32	46	40	48	26	35.5	48.0	7.0
33	47	40	48	26	35.5	48.0	7.0
35	49	42	50	26	34.5	47.0	8.0
38	54	47	56	30	37.0	47.0	8.0
40	56	49	58	30	37.0	47.0	8.0
43	59	52	61	30	37.0	52.0	8.0
45	61	54	63	30	37.0	52.0	8.0
48	64	57	66	30	35.0	50.0	10.0
50	66	60	70	30	37.5	50.0	10.0
53	69	63	73	30	37.5	60.0	10.0
55	71	65	75	30	37.5	60.0	10.0
58	78	68	78	33	42.5	60.0	10.0
60	80	70	80	33	40.5	58.0	12.0
63	83	73	83	33	40.5	58.0	12.0
65	85	75	85	33	40.5	68.0	12.0
68	88	79	90	33	40.5	68.0	12.0
70	90	81	92	33	48.0	68.0	12.0
75	99	86	97	40	48.0	68.0	12.0
80	104	92	105	40	47.5	77.5	12.5
85	109	97	110	40	47.5	77.5	12.5
90	114	102	115	40	52.5	77.5	12.5
95	119	117	120	40	52.5	77.5	12.5
100	124	122	125	40	52.5	77.5	12.5
